Case Study 1 - Pool 16
Six-Hour Field Timelapse

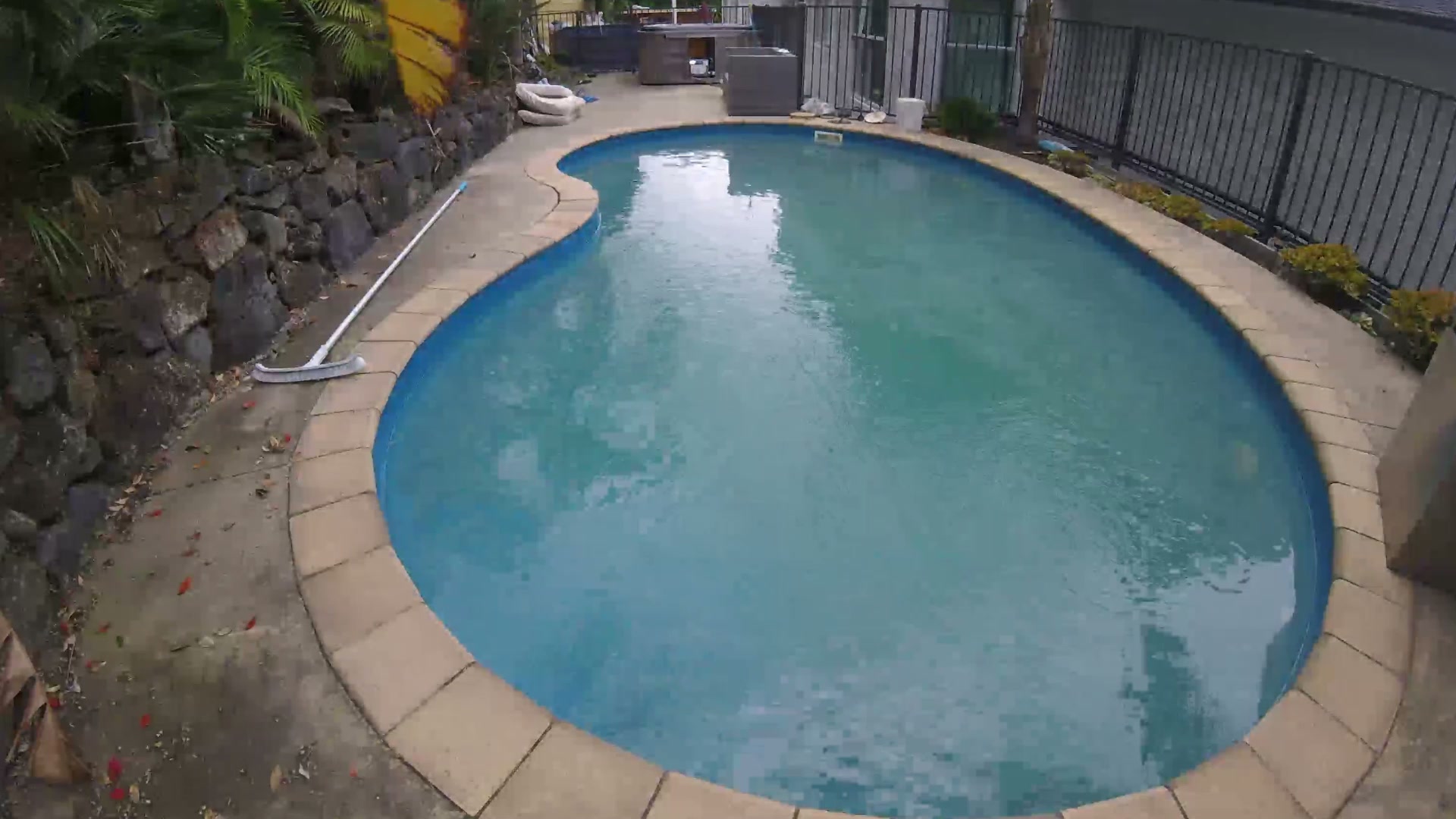

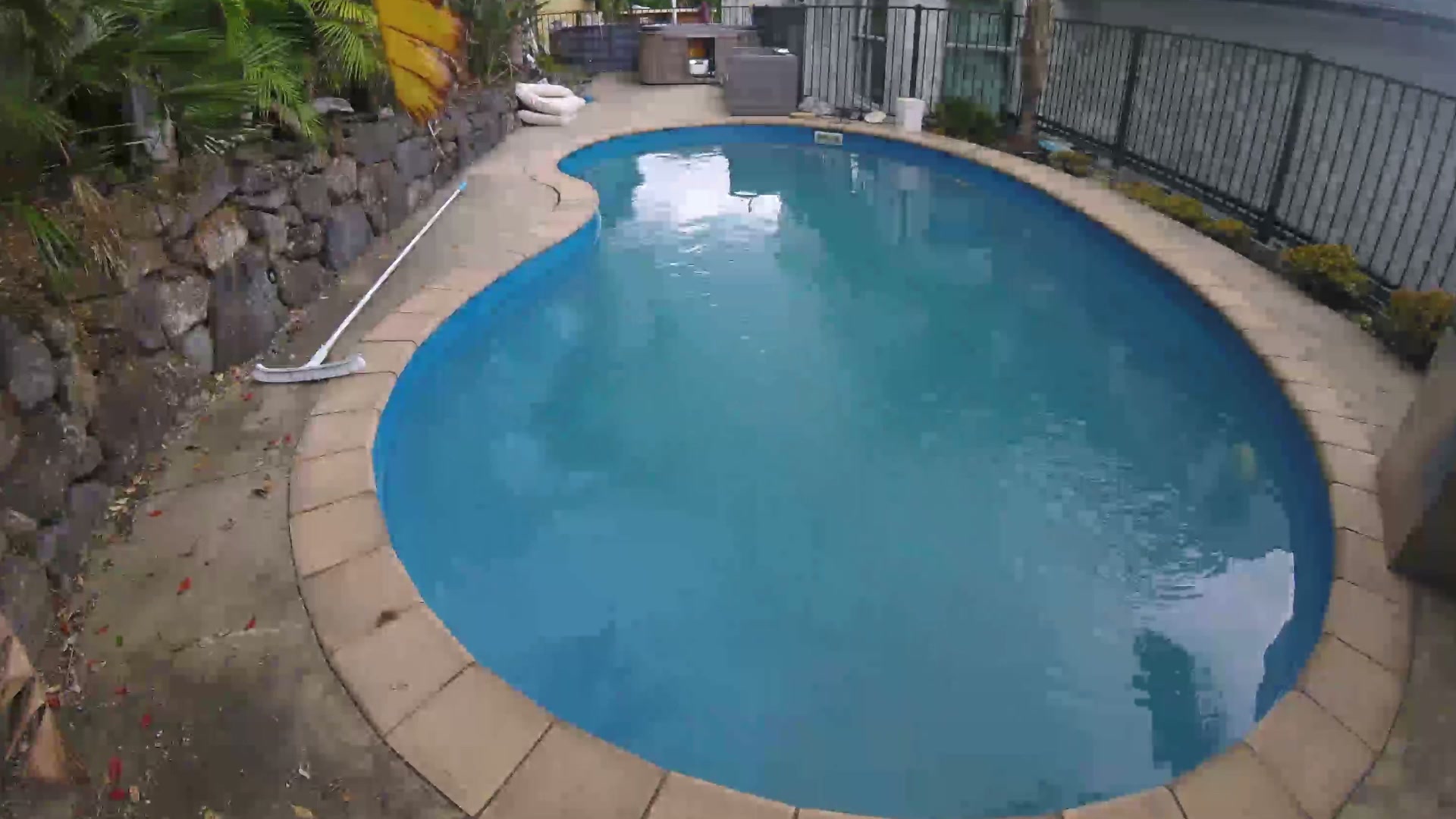

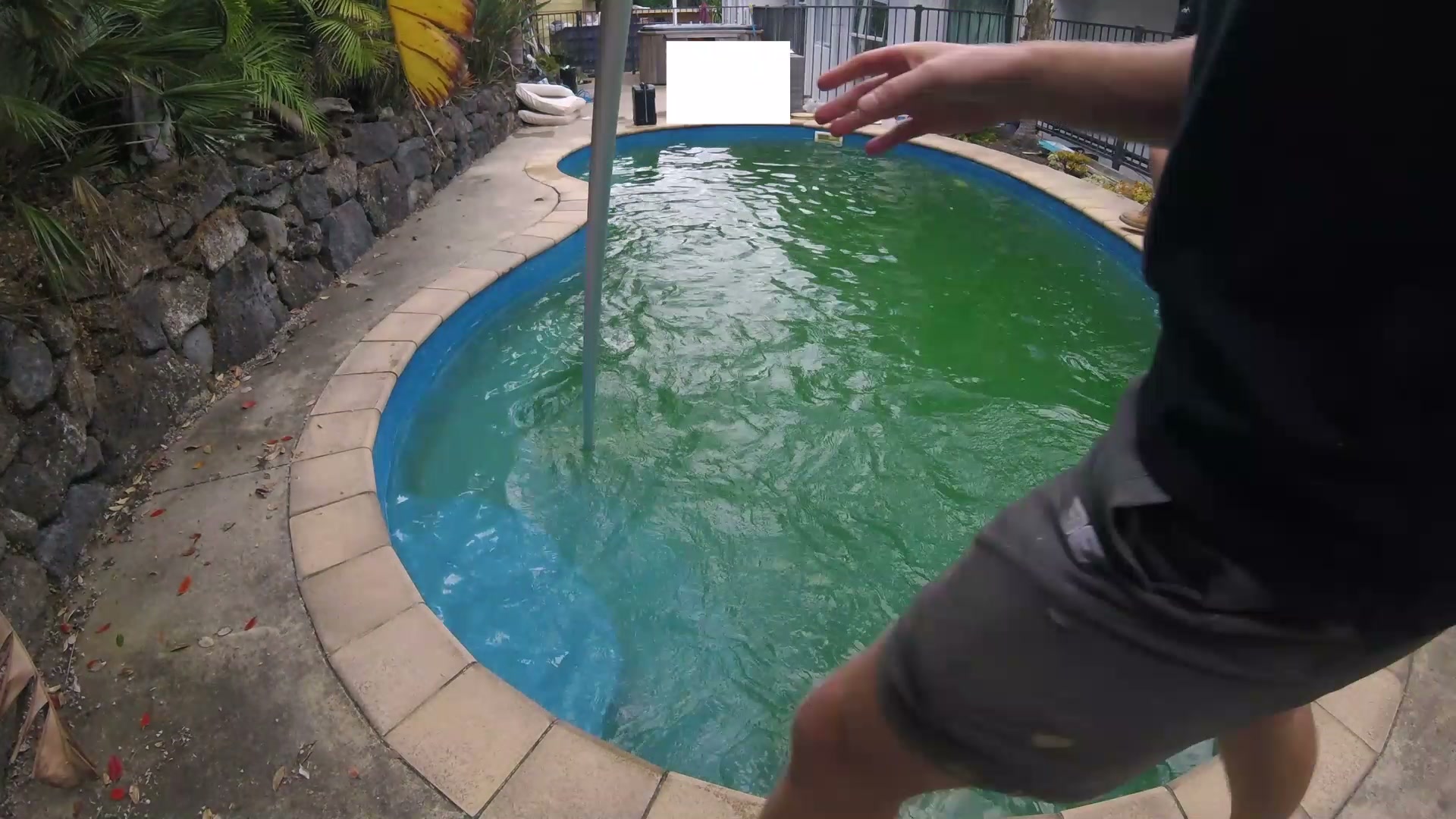

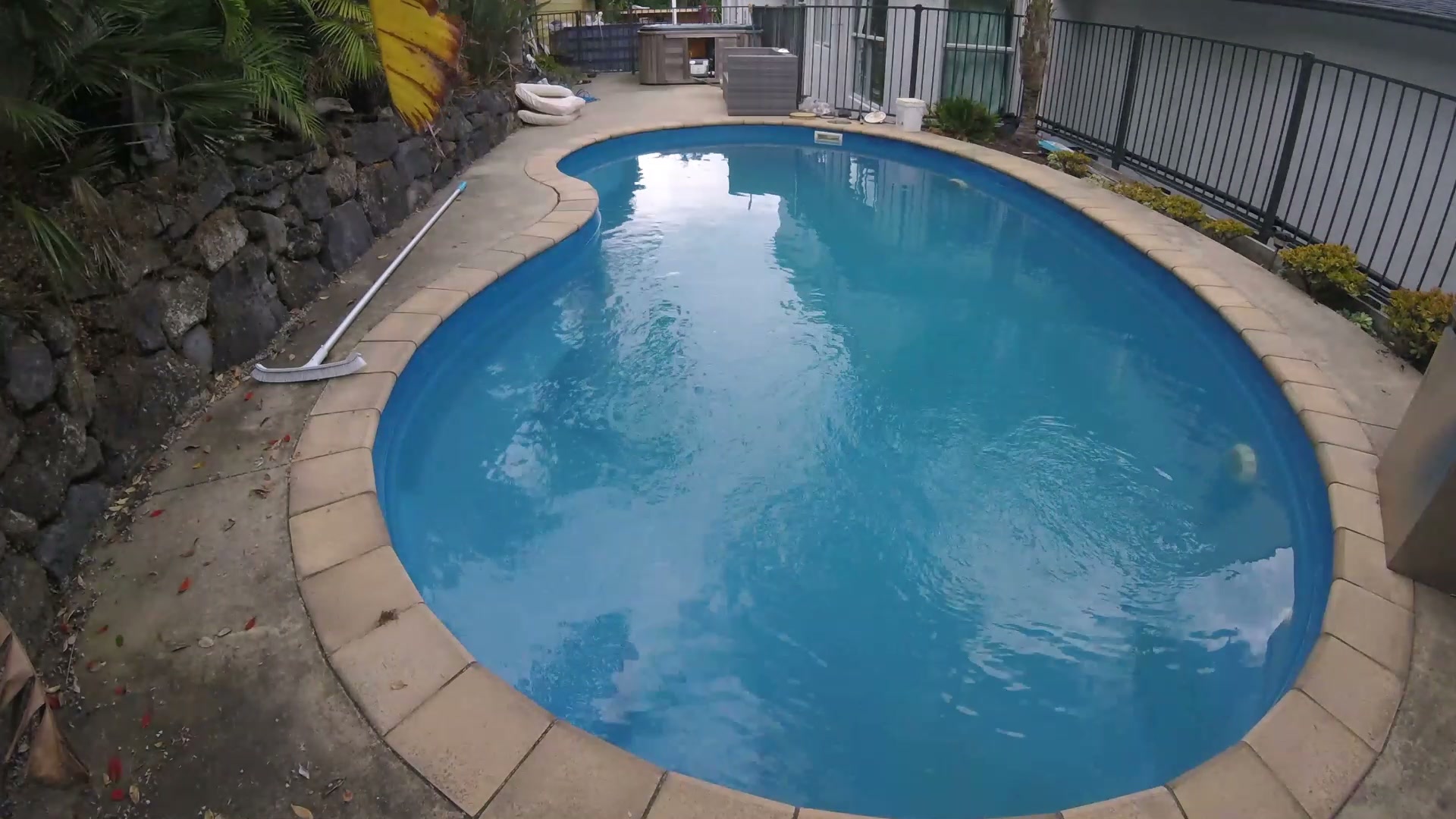

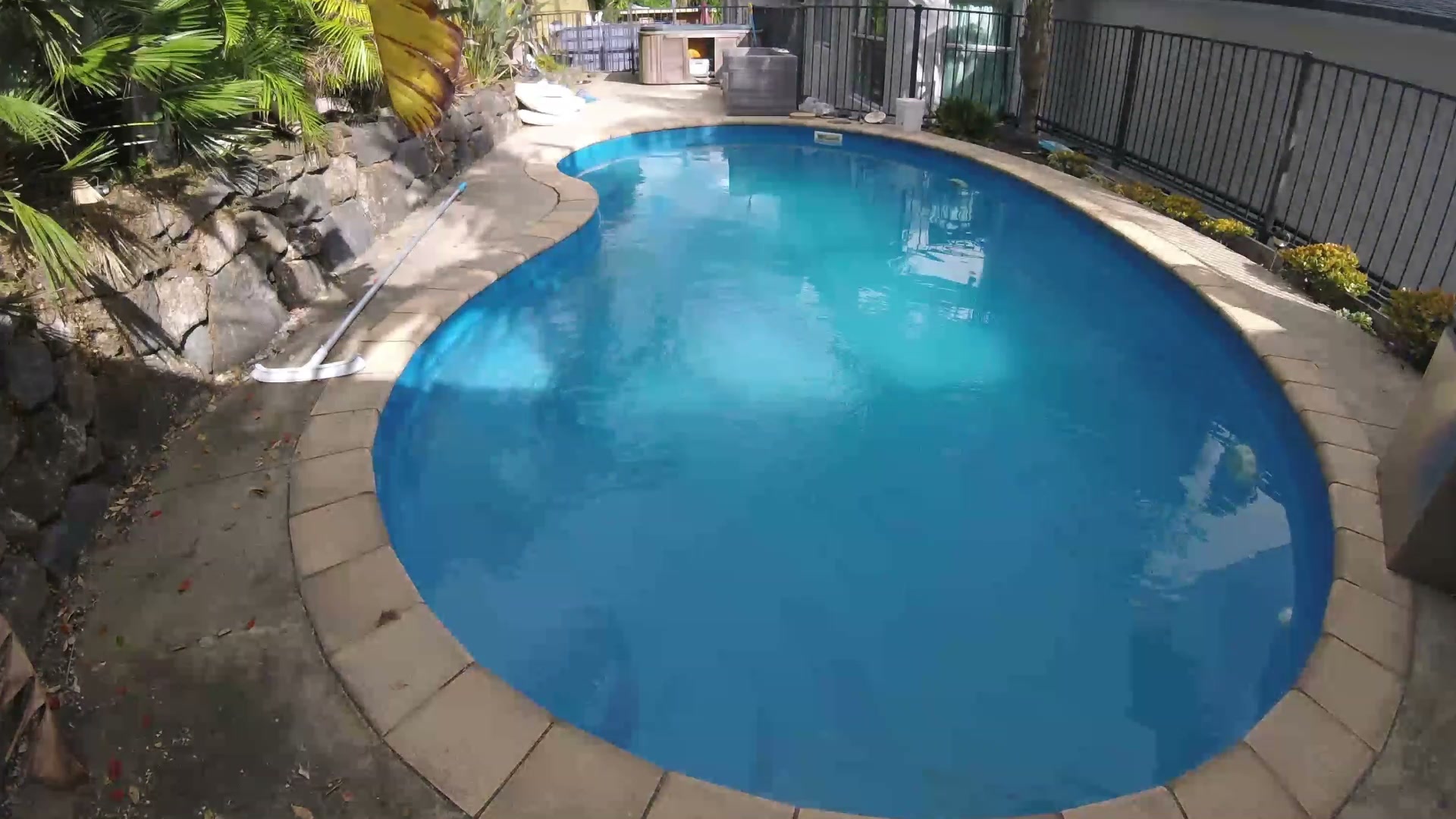

A GoPro recorded a compressed timelapse representing approximately six hours of the initial treatment sequence. The stills below are unenhanced frames extracted from that video.
Watch the compressed field timelapse:
Video evidence: VD-005332 | View Pool 16 in Appendix A
Scan to watch on YouTube
Evidence note: The sequence documents visible change during the recorded process. It does not isolate Dazzle from the accompanying chlorine, water balancing, brushing and filtration inputs, and it should not be read as the complete recovery record.
Pool Characteristics
| Pool ID | Pool 16 |
|---|---|
| Pool volume | 38,000 L |
| Construction type | Fibreglass |
| Surface finish | Fibreglass |
| Filtration system | Glass Sand |
| Filter media | Glass Sand |
| Sanitising system | Salt Chlorinator |
Initial Water Chemistry
| FAC | 0.7 | CC | 0.1 |
|---|---|---|---|
| Total Chlorine | 0.8 | pH | 7.9 |
| Total Alkalinity | 30 | Calcium Hardness | 85 |
| Cyanuric Acid | 35 |

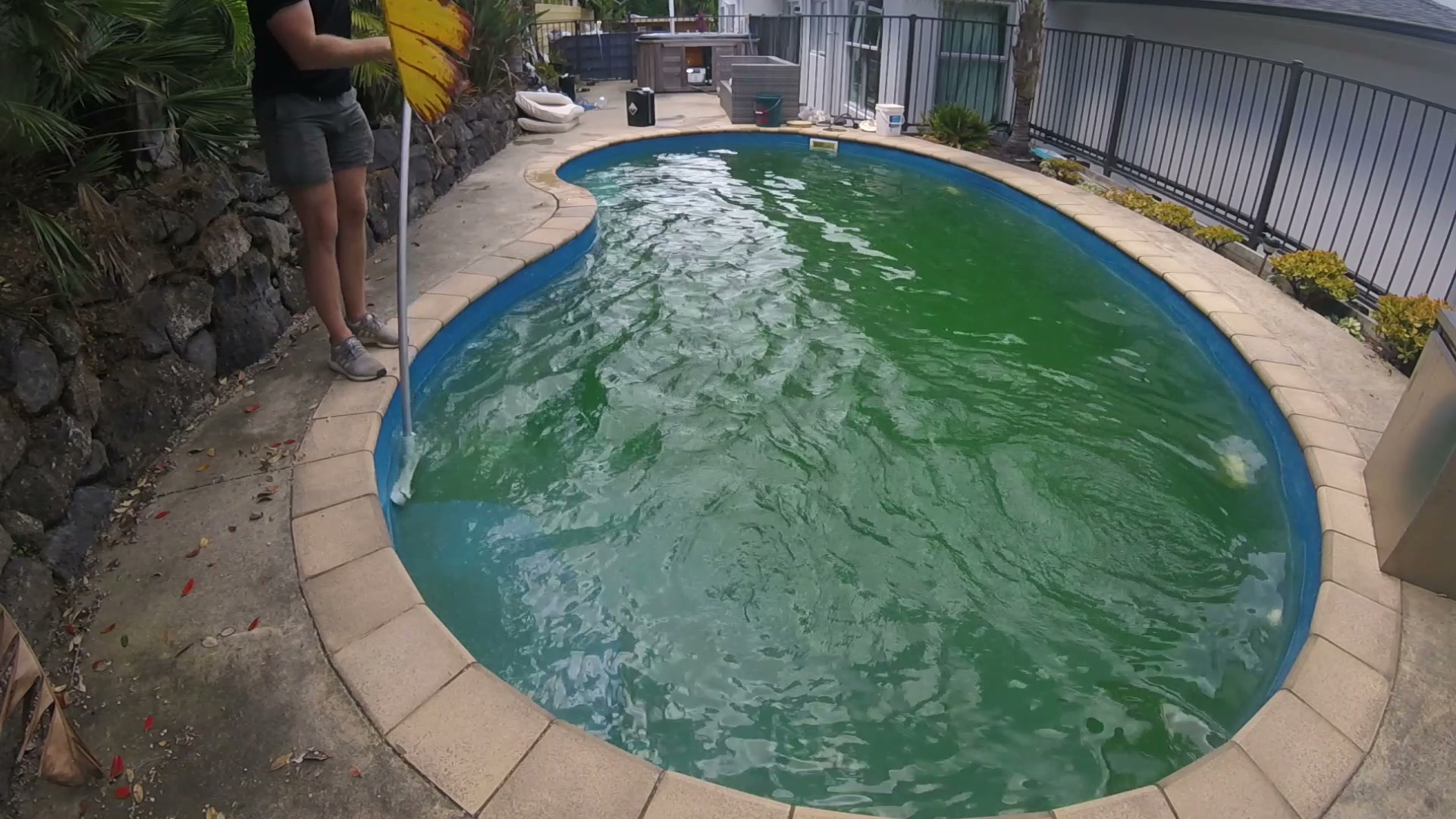

Initial Recorded Condition
| Initial field note | Green pool treatment. Set up go-pro to attempt a timelapse video. |
|---|---|
| Green status | Yes |
| Water clarity score | 0 |
| Filter cleaned | yes |
| Brushed | yes |
Recorded Recovery Treatment
| Chlorine | 2.83 L | Initial visit |
|---|---|---|
| Sodium bicarbonate | 4.47 Kg | Initial visit |
| Acid | 0.96 L | Initial visit |
| Calcium hardness adjustment | 4.10 Kg | Initial visit |
| Dazzle | 1.44 Kg | Initial visit |
Recovery Timeline
- Initial visitDate unknown
- Day 2 follow-up testDate unknown
- Two-week follow-up testDate unknown
- Four-week verification testDate unknown
Recorded Recovery Observations
- Initial: Initial note: Green pool treatment. Set up go-pro to attempt a timelapse video.
- Initial: Green: Yes
- Initial: Water clarity score: 0
- Initial: Filter cleaned: yes
- Initial: Brushed: yes
- Second Visit: Pool is now crystal clear. Customer said they vaccumed this morning.
- Second Visit: Water clarity score: 9
- Third visit: Water clarity score: 8
- Follow-up: Water clarity score: 10
- Follow-up: Exceptional water clarity. Pool looks beautifully clear. No algae present.
- Final verification: Water clarity score: 8
- Final verification: The pool is still holding a clean, clear finish.
- Recorded note: Timelapse video of treatment process.
